OVERVIEW

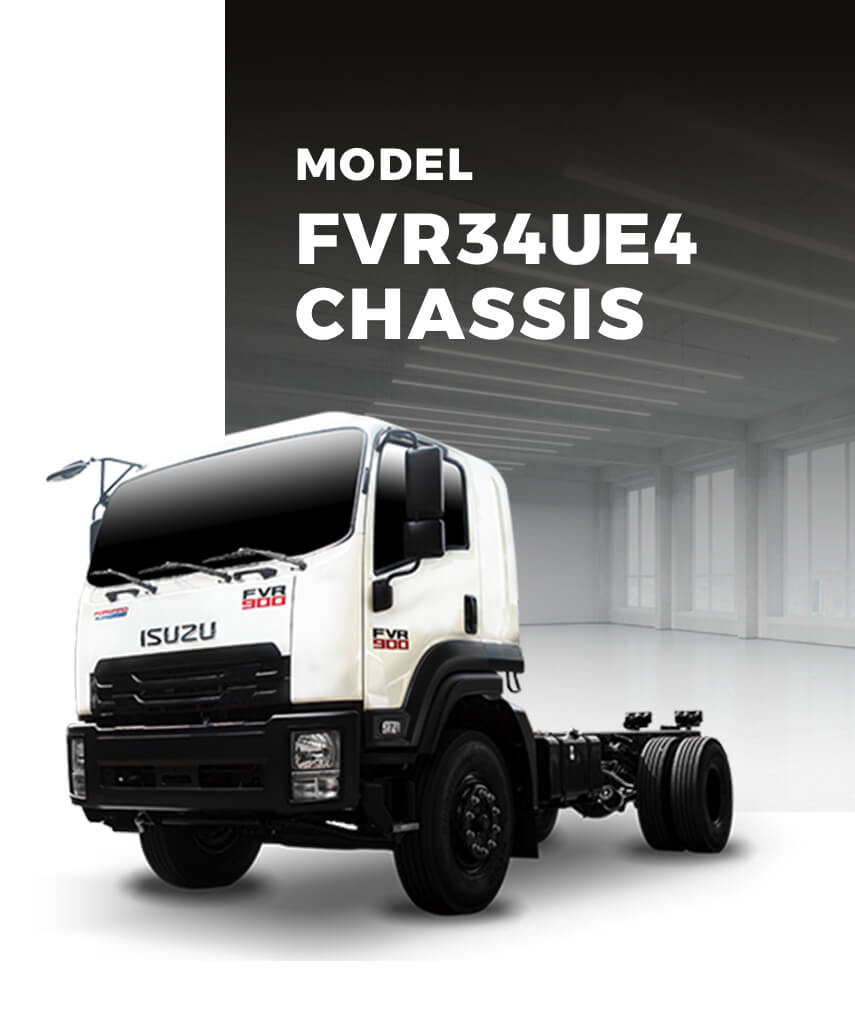

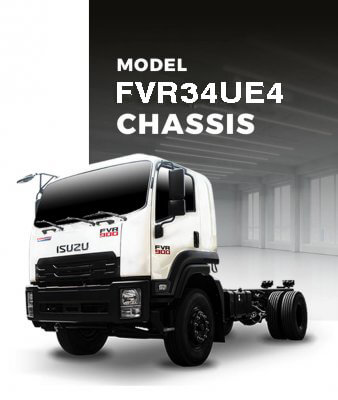

model ISUZU TRUCK - FVR34UE4 - Chassis

Gross vehicle mass 16,000 (KG)
Overall Dimension (OAL x OW x OH) 11,870 x 2,485 x 2,880 (mm)
Max. power 280 (206) / 2,400 (Ps(kW) / rpm)
Emission EURO 4
Manufacturers Name Isuzu Vietnam Co., Ltd
Manufacturers Address 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City
Origin Vietnam
Certification number of Approval (TA) 0012/VAQ18 – 01/19 – 00
Suggested retail price 1,354,909,091 VNĐ

* Applied for cabin chassis. (Price is included VAT)

ENGINE

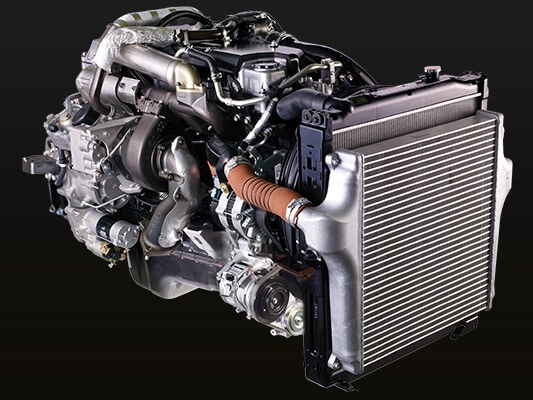

Powerful common rail engine

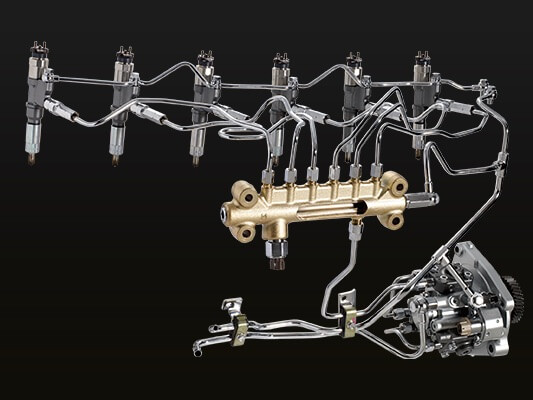

High-pressure common rail injection system

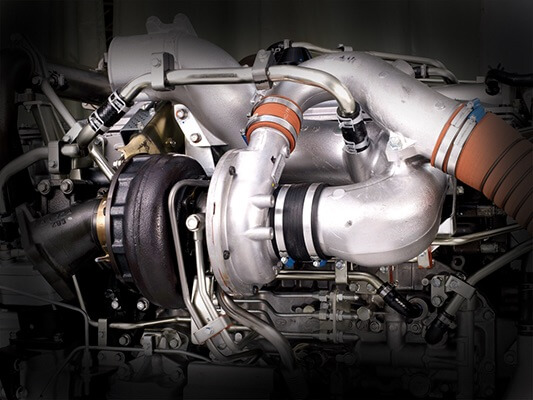

Variable geometry turbo system

performance

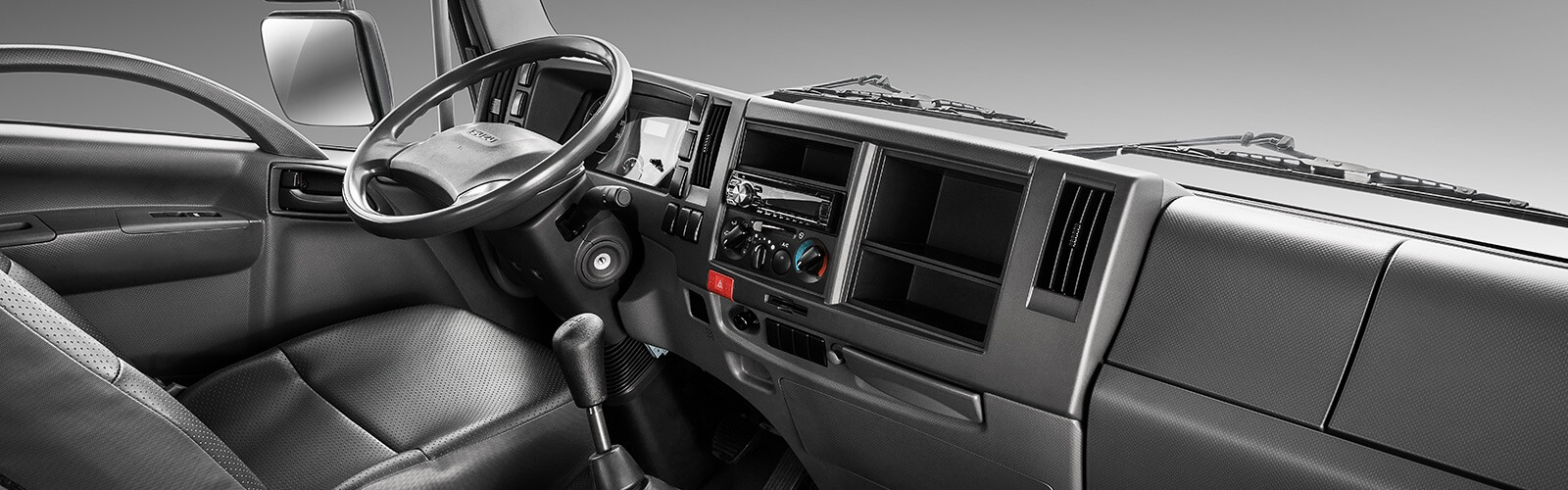

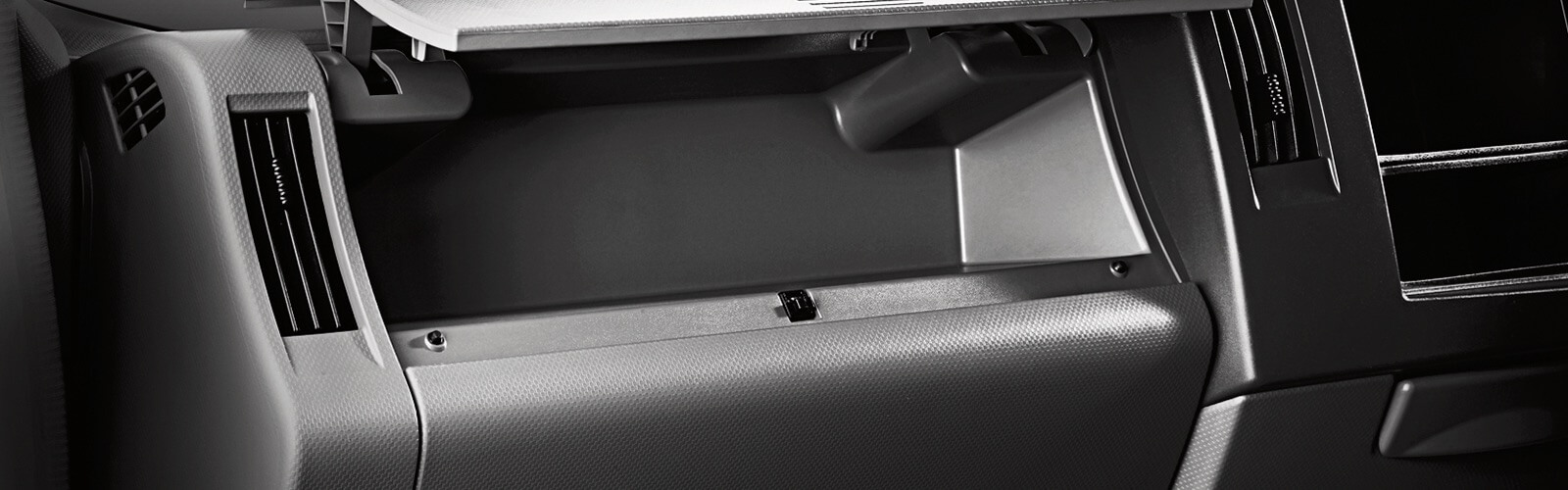

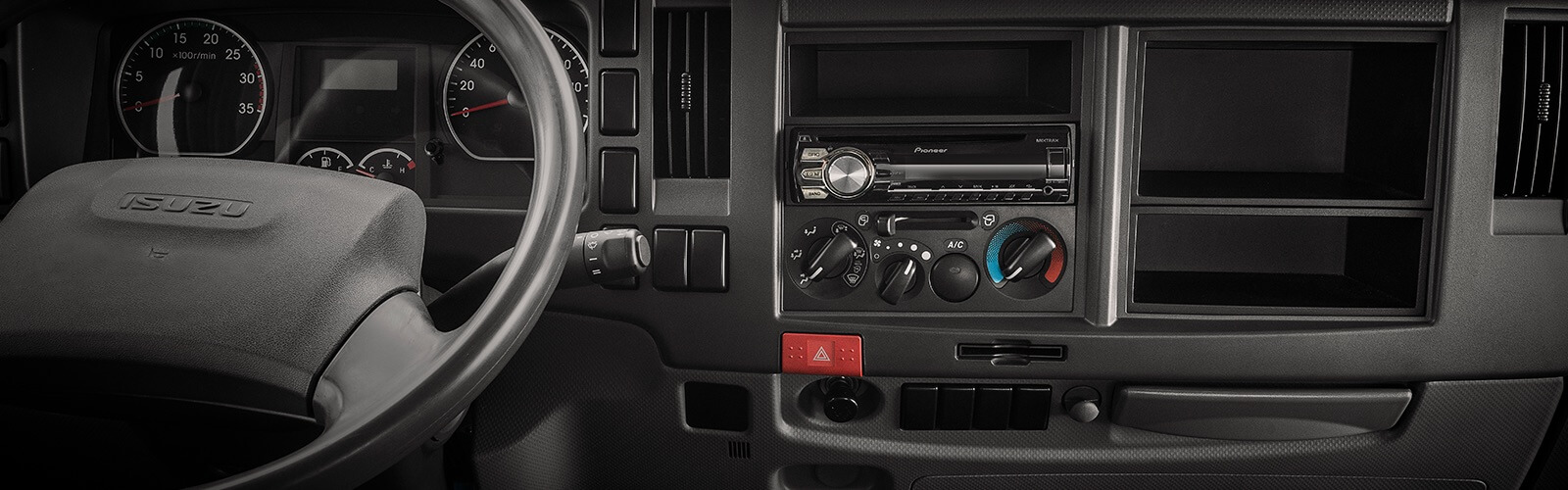

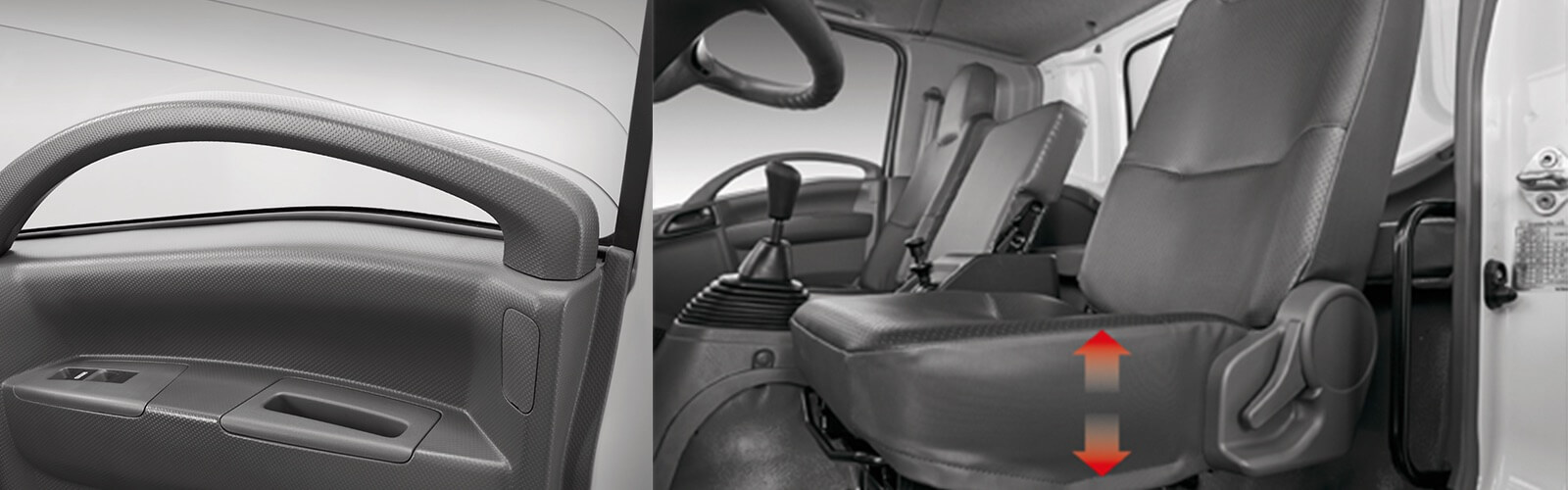

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
PERFORMANCE
BASIC SYSTEMS
EQUIPMENTS
Gross vehicle mass kg 16,000
Kerb mass kg 5,445
Number of seats person 3
Fuel tank liter 200
Overall Dimension (OAL x OW x OH) mm 11,870 x 2,485 x 2,880
Wheelbase (WB) mm 6,600
Front – Rear treat (AW / CW) mm 2,060 / 1,850
Ground clearance (HH) mm 280
Front – Rear over hang (FOH/ROH) mm 1,250 / 4,020
Model 6HK1E4SC
Type Common rail, turbo – intercooler
Emission Euro 4
Displacement cc 7,790
Bore & stroke mm 115 x 125
Max. Power Ps(kW) / rpm 280 (206) / 2,400
Max. Torque N.m(kgf.m) / rpm 882 (90) / 1,450
Transmission ES11109
9 forward and 1 reverse
Max. Speed km/h 94
Grade Ability % 31
Steering system Recirculating ball with hydraulic assisted

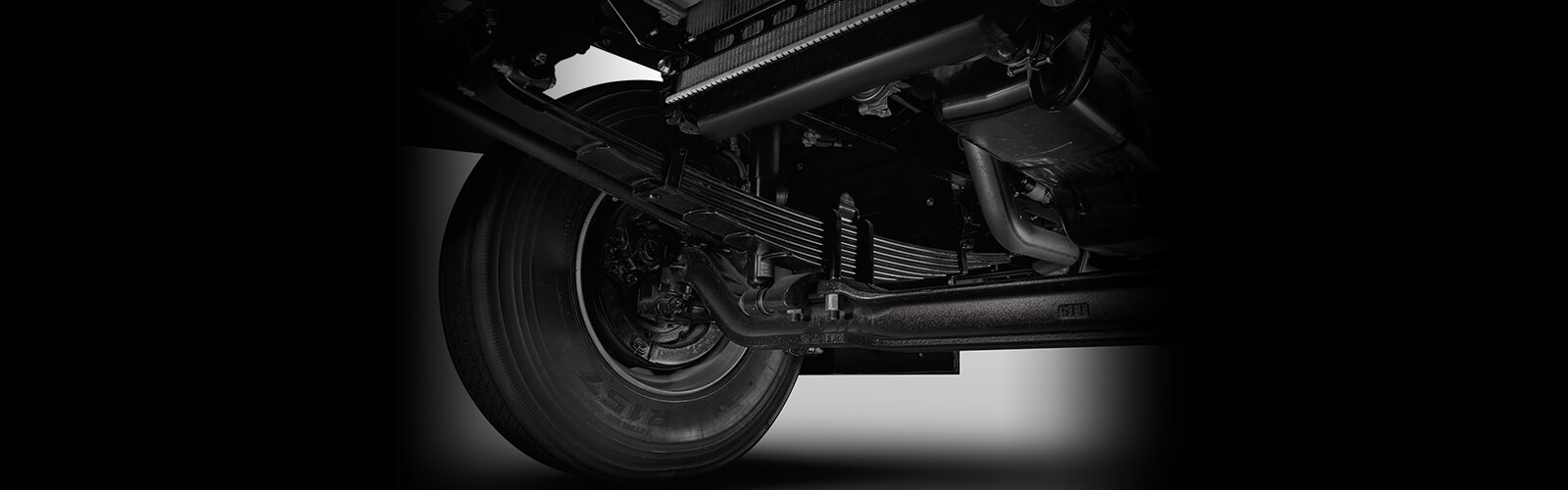

Suspension system front – rear Dependent, leafspring, shock absorber

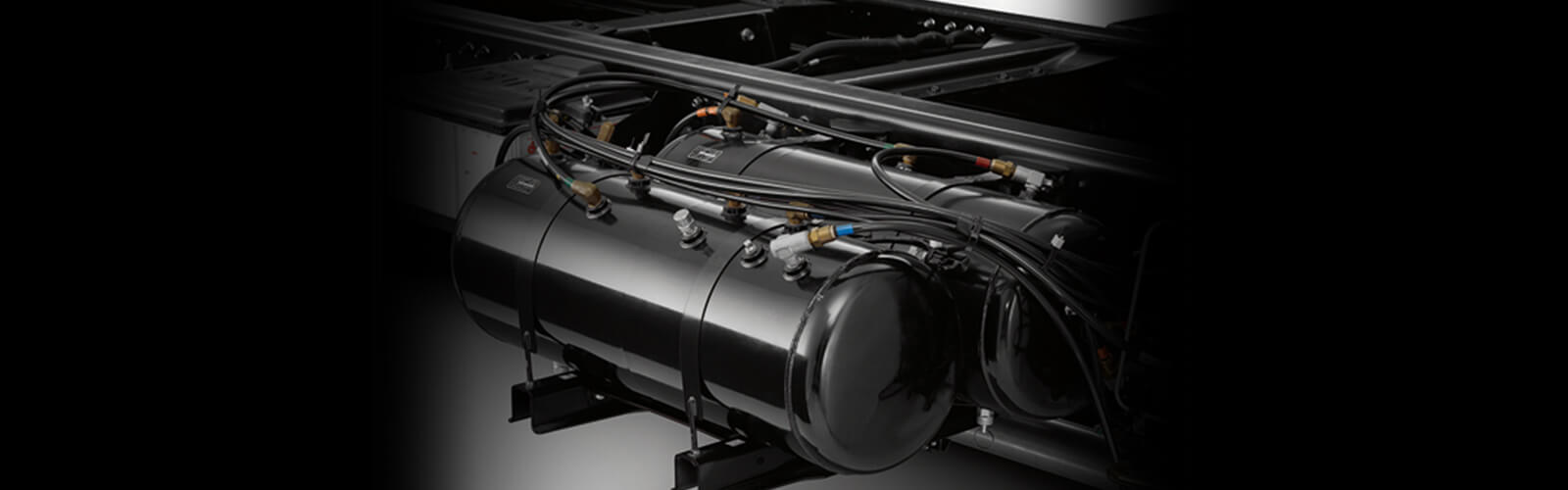

Brake system front – rear Drum, full-air dual circuit
Tire size front – rear 10.00R20
Generator 24V-60A
Battery 12V-65AH x 2
  • 2 sun visors driver & co-driver
  • Power window & central door lock
  • Inside guard bar
  • Cigar lighter
  • Air conditioner
  • USB-MP3, AM-FM radio
  • 3-point seat belts
  • Reversing warning buzzer
  • Cooler and defroster
  • Exhaust brake
  • Fog lamps

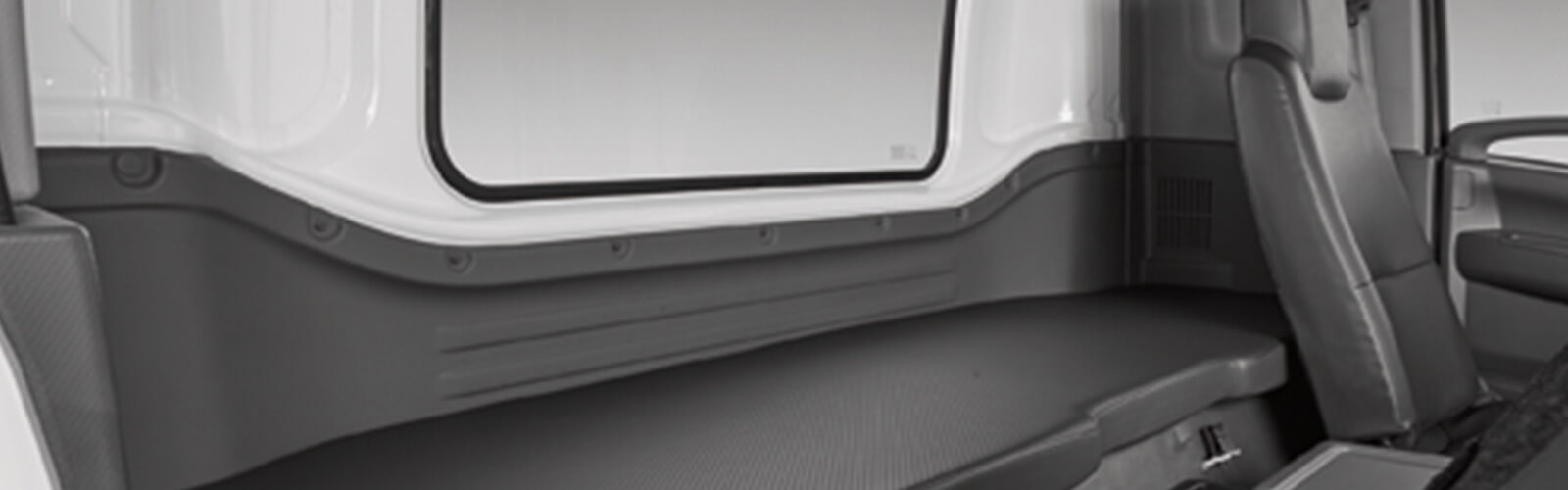

  • 1 bed (Model FV)
